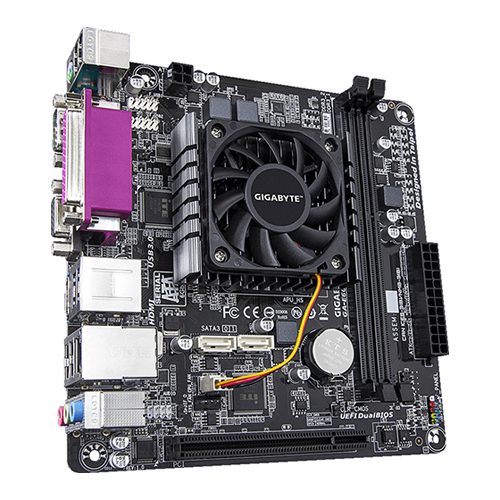

Gigabyte
Մայրական տախտակներ
| Անուն | Բնութագիր |
|---|---|
| APU | 1. Built in an AMD® E1-6010 (1.35 GHz) APU with Radeon™ R2 graphics SoC * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2. 2MB L2 cache |
| Հիշողություն | 1. 2 x DDR3 DIMM sockets supporting up to 32 GB of system memory * The maximum 32 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. 2. Support for DDR3 1333/1066 MHz memory modules (Please refer "CPU Support List" for more information.) |
| Onboard Graphics | Integrated in the SoC: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200. 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160. * Support for HDMI 1.4a version. 3. Maximum shared memory of 2 GB |
| Աուդիո | 1. Realtek® ALC887 codec. 2. High Definition Audio. 3. * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. 4. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Ընդլայնման ուղիներ | 1 x PCI slot |
| Ինտերֆեյս | Integrated in the SoC: 2 x SATA 6Gb/s connectors |
| USB | Integrated in the SoC: 1. 2 x USB 3.1 Gen 1 ports on the back panel 2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Ներքին մուտք/ելքային միացումներ | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |

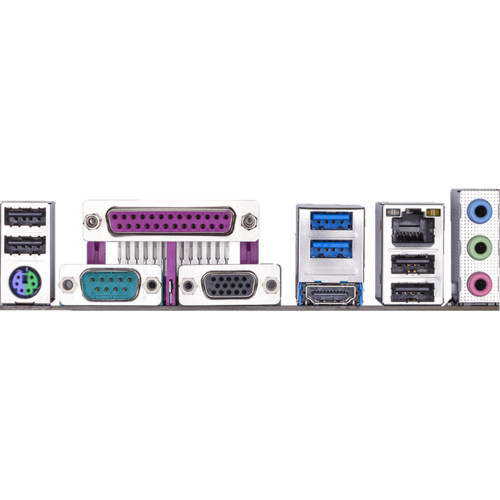

| Ելքային միացումներ | 1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Եզակի հնարավորություններ | Support for @BIOS Support for Q-Flash Support for Xpress Install |
| Ֆորմ ֆակտոր | Mini-ITX Form Factor; 17.0cm x 17.0cm |
