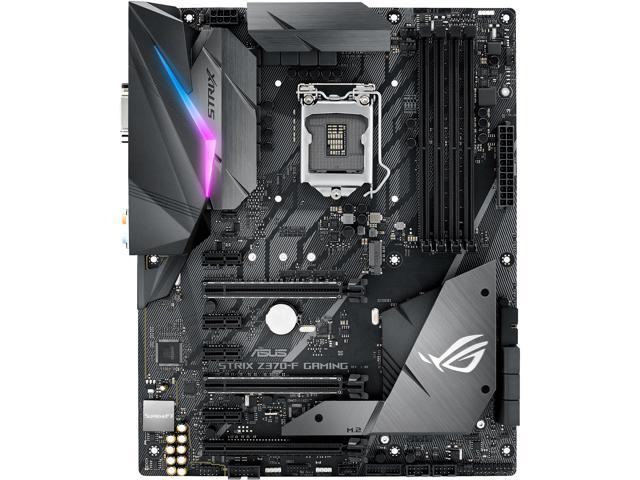

ASUS
INTEL LGA 1151
| Характеристика | Описание |
|---|---|
| CPU | Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® Z370 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4000, 3866, 3733, 3600, 3466, 3400, 3333, 3300, 3200, 3000, 2800, 2666/2400/2133 MHz |
| On-board graphics | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC |
| LAN | Intel® I219V Anti-surge LANGuard ROG GameFirst Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1 |
| USB | Intel® Z370 Chipset : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z370 Chipset : 6 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output) |
| Internal I/O Connectors | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x RGB Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 1 x AIO PUMP Header 3 x 3D Mount screw port(s) |
| Back Panel Connectors | 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM, 2 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0 |
| Form factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
