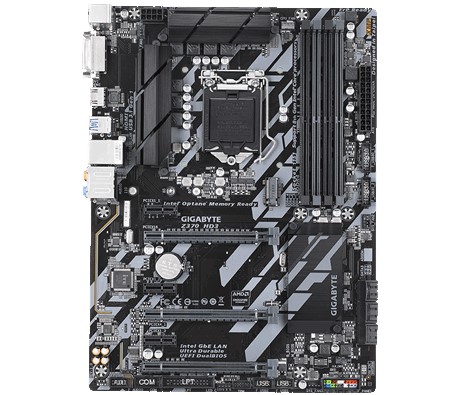

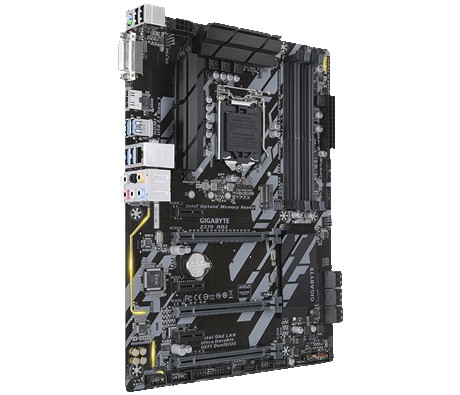

Gigabyte
INTEL LGA 1151
| Name | Description |
|---|---|
| CPU | Supports 8th Gen Intel® Core™ Processors |
| Chipset | Intel® Z370 Chipset |
| Memory | Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs |
| On-board graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Audio | Realtek® ALC892 codec High Definition Audio |
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| Storage interface | 1 x M.2 connector |
| USB | Chipset: 8 x USB 3.1 Gen 1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Back Panel Connectors | x PS/2 keyboard/mouse port |
| BIOS | 2 x 128 Mbit flash |
| Unique Features | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Form factor | ATX Form Factor; 30.5cm x 22.5cm |
