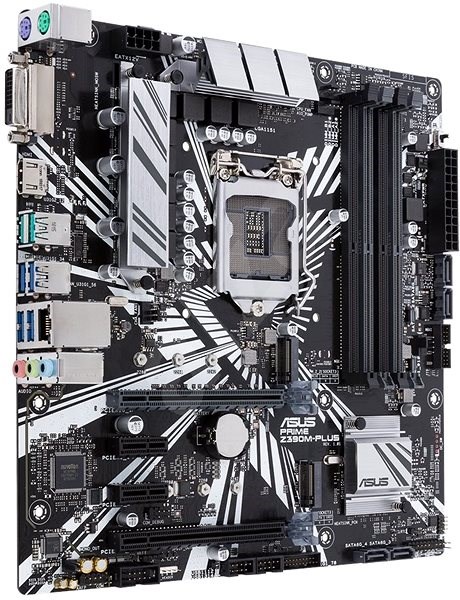

ASUS
INTEL LGA 1151
| Name | Description |
|---|---|
| CPU | Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU |
| Chipset | Intel® Z390 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| On-board graphics | Integrated Graphics Processor- Intel® HD Graphics support |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 |
| Storage interface | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A 3 x Audio jack(s) |
| USB | Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| Internal I/O Connectors | 2 x USB 3.1 Gen 2 port(s), 8 x USB 3.1 Gen 1 port(s), 4 x USB 2.0 port(s), 2 x USB 2.0, 1 x M.2 Socket 3, 1 x M.2 Socket 3, 1 x COM, 4 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan, 1 x AIO_PUMP, 1 x S/PDIF, 1 x 24-pin EATX, 1 x 8-pin EATX 12V, 1 x Front panel audio connector, 1 x MemOK, 1 x Clear CMOS, 1 x System panel connector, 1 x Mono Out header, 1 x RGB Header |
| Form factor | mATX |
