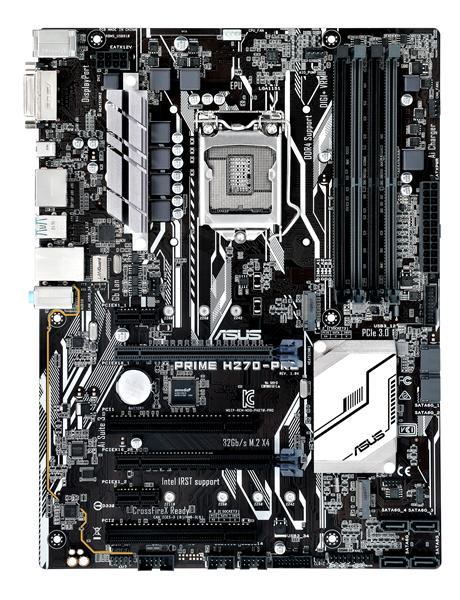

ASUS
INTEL LGA 1151
| Name | Description |
|---|---|
| CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® |
| Chipset | Intel® H270 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz |
| On-board graphics | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 3 displays simultaneously |
| Multi-Graphics Technology | Supports AMD CrossFireX™ Technology |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 2 x PCI |
| USB | ASMedia® USB 3.1 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A) Intel® H270 Chipset : 1 x USB 5Gb/s port(s) port(s) Intel® H270 Chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue) Intel® H270 Chipset : 6 x USB 2.0 port(s) (2 at back panel) |
| Internal I/O Connectors | 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x AIO PUMP Header |

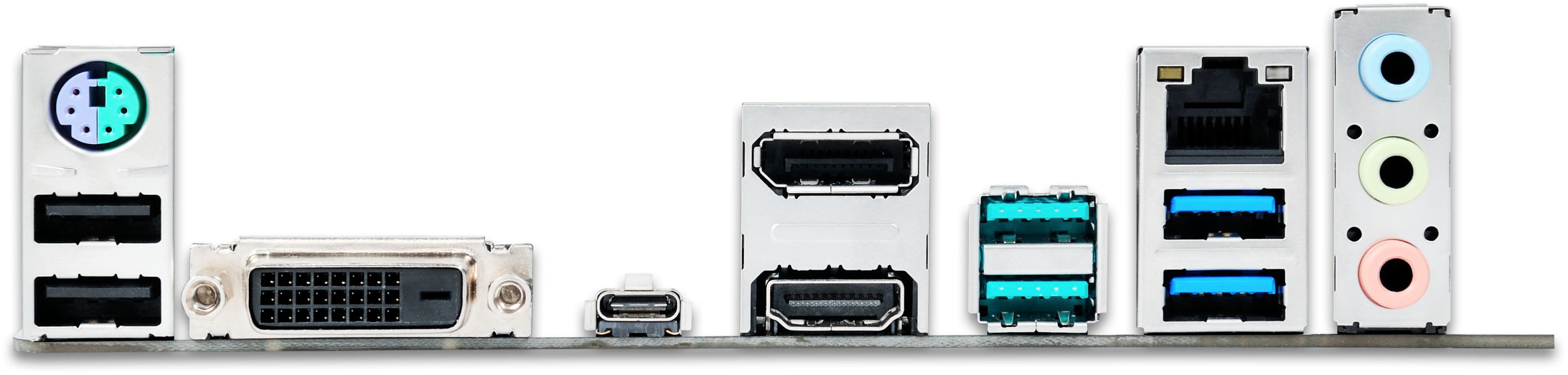

| Back Panel Connectors | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output ) 2 x USB 3.1 Gen 2 (teal blue) 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x 8-channel Audio I/O |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0 |
| Form factor | ATX Form Factor 12.0 inch x 8.9 inch ( 30.5 cm x 22.6 cm ) |
