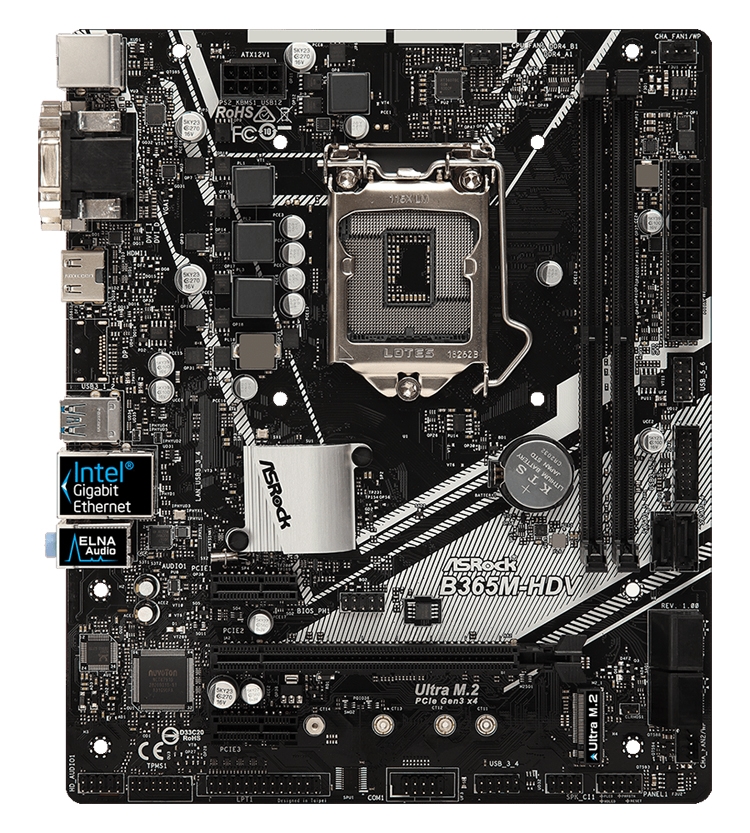

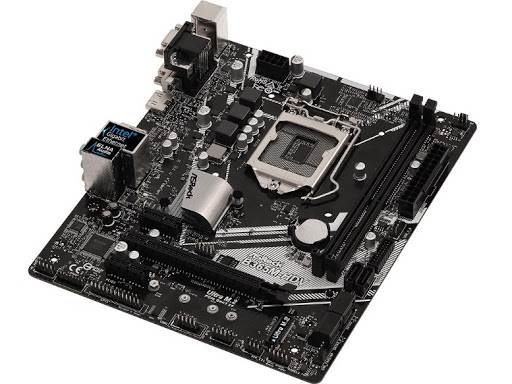

Asrock
INTEL LGA 1151
| Name | Description |
|---|---|
| CPU | Supports 9th and 8th Gen Intel Core Processors (Socket 1151) |
| Chipset | Intel B365 |
| RAM | 2 x DDR4 DIMM Slots; supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory; Max. capacity of system memory: 32GB |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support; SMBIOS 2.7 Support |
| Graphics | DirectX 12; Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Interface | D-Sub; DVI-D; HDMI |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Expansion Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Storage interface | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Connector | 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Front panel Connectors | 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Form factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm |
